   India's First CE Mark Machine

Table Top Lab Model for R & D For Pharmaceutical and Other Research Applications

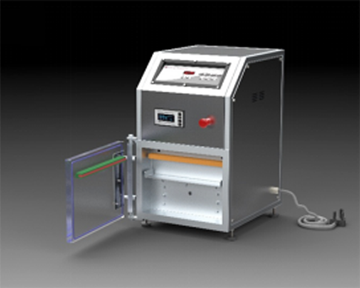

Table Top Lab Model for R & D For Pharmaceutical and Other Research Applications Vacuum Packaging Machine

Product Description :

Unique features : Most advanced machine with Made in Germany Validatable Temperature controller which can be connected to PC for storing Data. Also available with 21 CFR.

Vacuum chamber size :Up 610 Width x 100 Depth/Length x 400 mm Height. Other Height optional

Overall Size : 525 x 590 x 350

Construction : Complete SS 304

Lid : Transparent Acrylic or SS Dome optional

Vacuum Pump : 25 cum/ 416 LPM

Gas Flushing : Optional.

Vacuum monitoring & control : PLC and HMI with dial gauge. Vacuum sensor optional.

Electrical consumption : Maximum 1 to 2 Kwh, can be operated on domestic connection.

Packing cycle : 1 to 2 Cycles/ minute depending upon the product to vacuum packed.

Capacity : Upto 800 kg/ shift of 8 hours

Winner special :Maintenance free Vacuum actuator for lifting sealing bars. Short circuit free non metallic. Made from fabric coated sealing bars. We make customize machines as per customers requirement, quantity no bar

Note : Bulk packing machine upto single pack of 200 kg also available with similar specification
